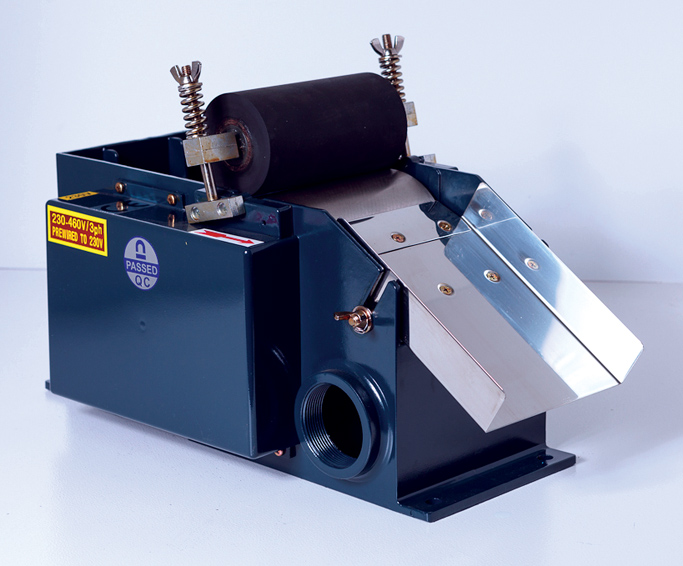

A magnetic coolant separator plays a vital role in your cutting fluid filtration system. These maintenance-free devices separate metallic particles from oil-based or water-based cutting fluids.
Our separators are designed for easy installation with no piping changes. Coolant enters a powerful high-intensity magnetic field of close to 4000 Gauss that draws out even the tiniest particles — confirmed to remove metallic particles below 50-micron size in a single pass.
A built-in scraping system removes ferrous particles from the magnet face with each rotation of the magnetic drum. Auto-scraping maximizes performance and eliminates manual cleaning. A removable cover allows easy inspection.
Powerful neodymium magnets create a high-energy field housed in a non-magnetic stainless steel shell. Ferrous fines are attracted to the magnet while nonferrous fines pass through unaffected.
Typical applications include surface grinders, cylindrical grinders, belt grinders, grinding, honing and gear cutting — with dry sludge output and up to 30% lower maintenance costs compared to traditional methods.
