magnetic chip conveyors effectively transfer wet or dry ferrous chips, stamping slugs, turnings, parts or die scrap without carryover.
This scrap conveyor system moves material with the aid of permanent ceramic magnets located under a stainless-steel slider bed. An oil reservoir in the base of the conveyor self-lubricates the chain for quiet performance and low maintenance of this scrap handling system.

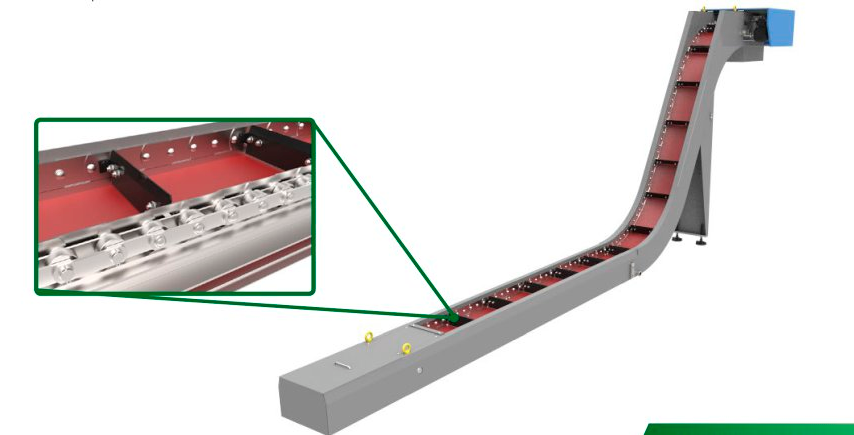

A scraper conveyor is a type of flight conveyor. It consists of a trough in which a continuous driven chain with flights is running. The flights are scraping the material over the bottom of the casing. The material is moving forward to the discharge point
The design is ideal for slower transportation speeds over short distances, on moderate inclines, or even under water.
We use forked chains, round link chains as well as box scraper chains as a chain type. According to the product and load, we use single as well as double strand versions.
Slat conveyors are a type of conveying technology that utilizes a chain-driven loop of slats to move product from one of its ends to another. The chain is driven by a motor, which causes it to cycle just as belt conveyors do. The main difference is that, instead of a rubber belt, this conveyor type uses slats connected to a chain, not dissimilar from vehicle treads. The result is a conveyor that provides a rigid, flat surface for every item on the conveyor, which is ideal for many kinds of products that cannot be used on rollers or belts due to their irregular shape. These slats are typically made of engineering plastic or metal, which allows slat conveyors to function in hazardous, high weight, and high-temperature environments. Another major advantage is that the slats can be built with unique shapes
